Entry systems for cables with and without connectors

DES LC Frames

DES LCQ
-
-
No items found.

DES LCQ

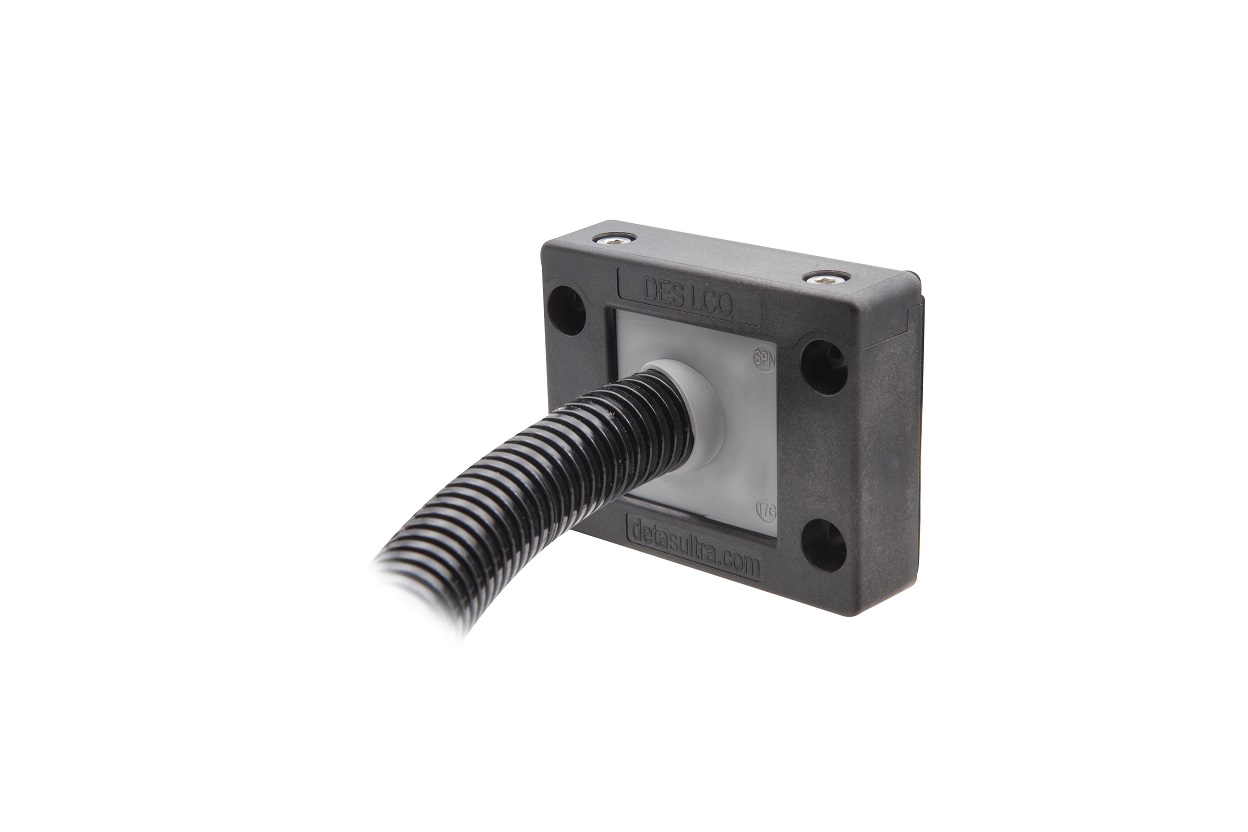

The DES LCQ is a divisible frame designed to accommodate different combinations of cables, with or without connectors. It is compatible with small and large grommets from the SPC and SPN families.

The gasket is pre-mounted on the frame, allowing the DES LCQ to be installed directly on the cabinet. Fastening is achieved with stainless steel screws, while the locknuts are overmolded.

The frame's innovative polycarbonate (PC) material provides superior strength, particularly in extreme temperatures, compared to other commonly used materials.

  • A set of 4 AISI304 fastening screws  with Black geomet finishing (code 1731991020) is available upon request.

​

"UL Recognised Component" Mark
Flammability class UL 94 V-0
Resistance to atmospheric agents
EU RoHS legislation
Models
Properties
Compatible grommets
Configurator
Download
Model Code Max. opening [mm] Opening Ø [mm] Cable Ø max. [mm] Dimensions A Size B Size C Dimensions H Dimensions [mm] Dimensions [mm] Cut-out Dimensions [mm] Cut-out A1xA2 Dimensions [mm] Dimensions [mm] L1xL2 Dimensions Ø P [mm] Thread No. cables - Ø cables [mm] Hole Ø  Clamping range [mm] Notes
DES LC Q 1731010350 40 x 39
  • Compatible with SPC and SPN grommets
  • Fastening with AISI 304 stainless steel screws and overmolded nuts.
  • Strain relief according to EN 62444
  • IP54 protection
  • Does not require external gasket.
  • Complete system according to UL94-V0
  • Material: PP+GF, halogen and silicone free
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
