SPN

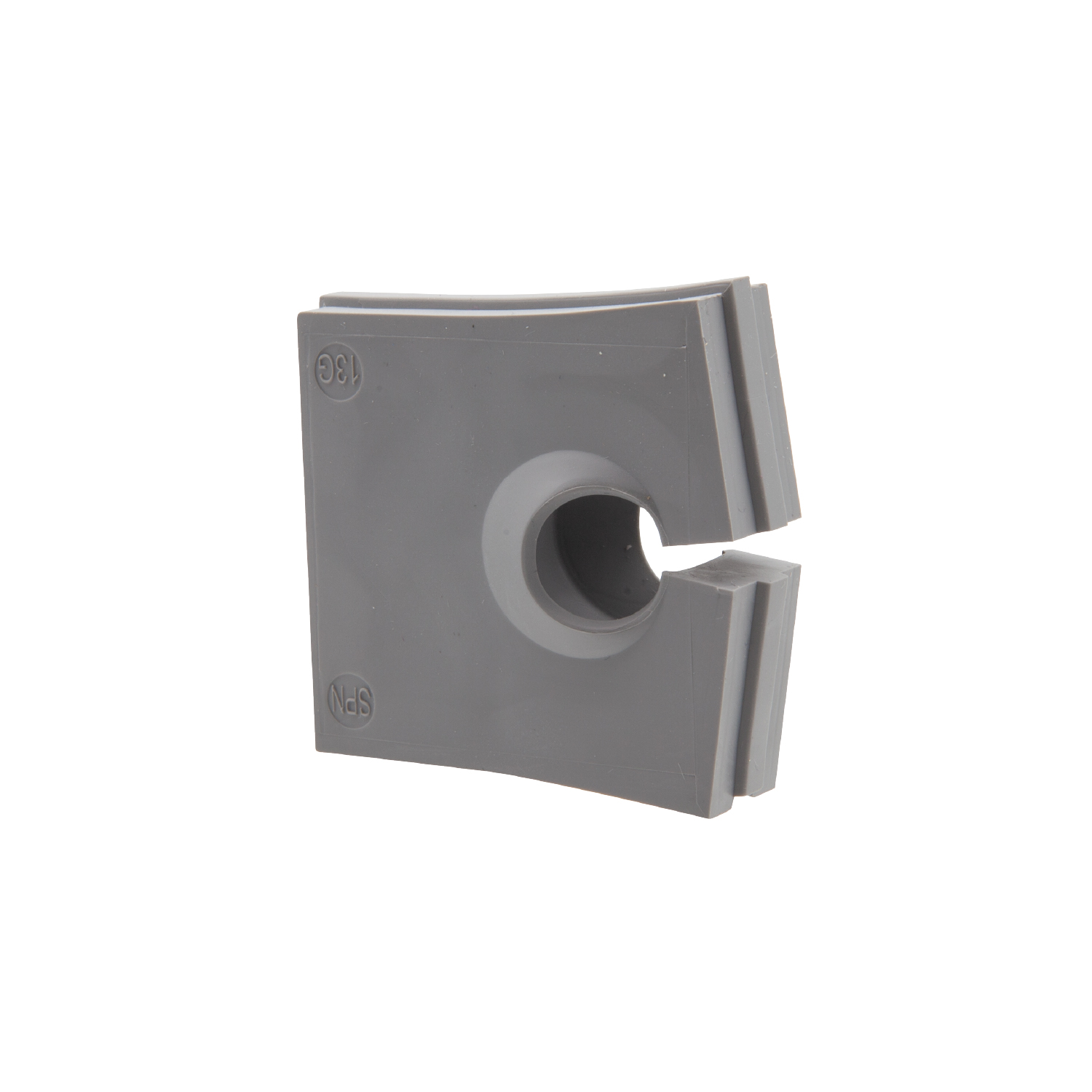

Gommini apribili multi-range di grandi dimensioni progettati per la serie di telai divisibili DES LC.
La gamma copre diametri di cavo da 11,5 mm a 31 mm con soli cinque modelli.
-
-
-
-
-
-
-
-
-
-
-
-
No items found.
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |

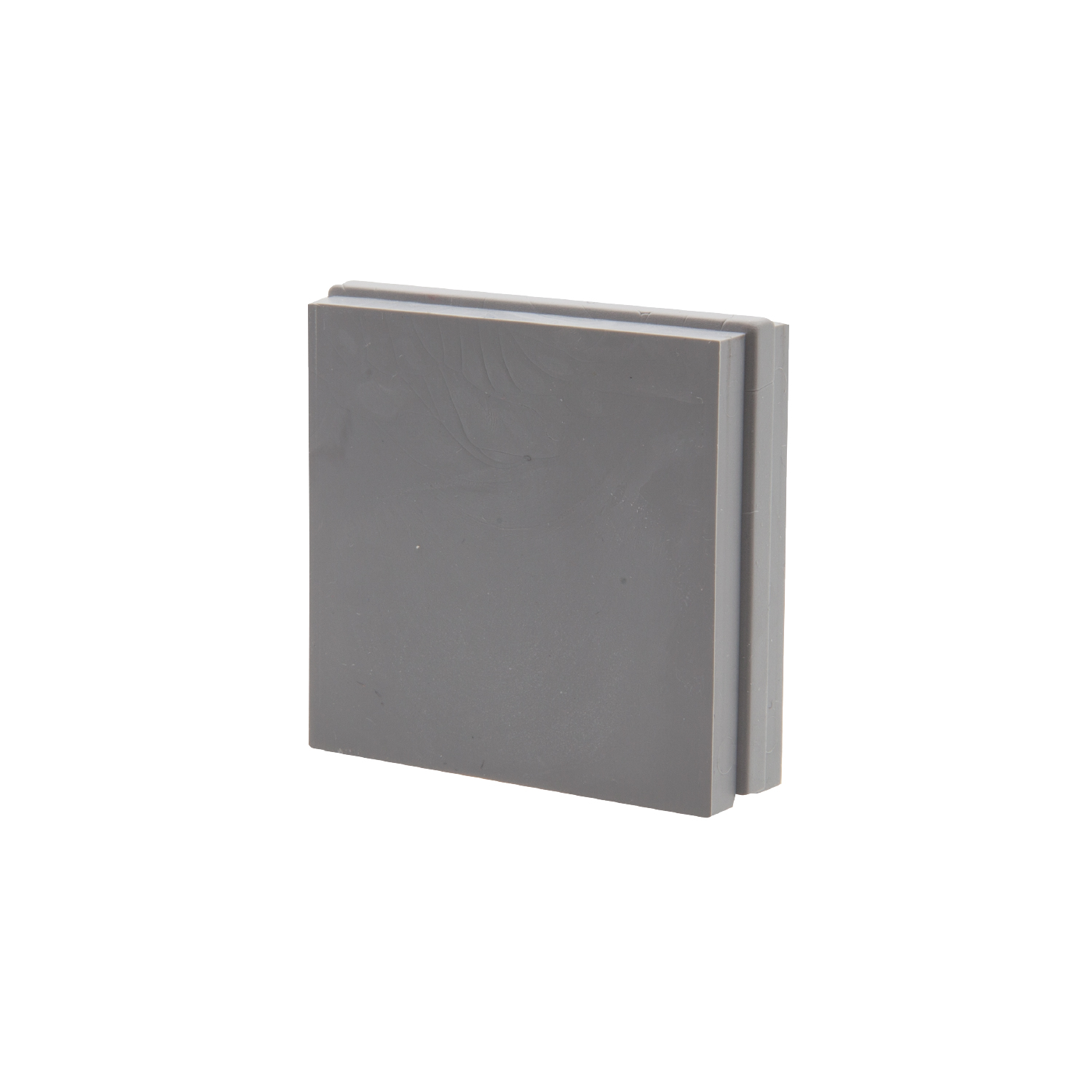

| SPN 0G | 1731053110 | - | ||||||||||||||||||
| SPN 13G | 1731053115 | 11,5 - 16 | ||||||||||||||||||

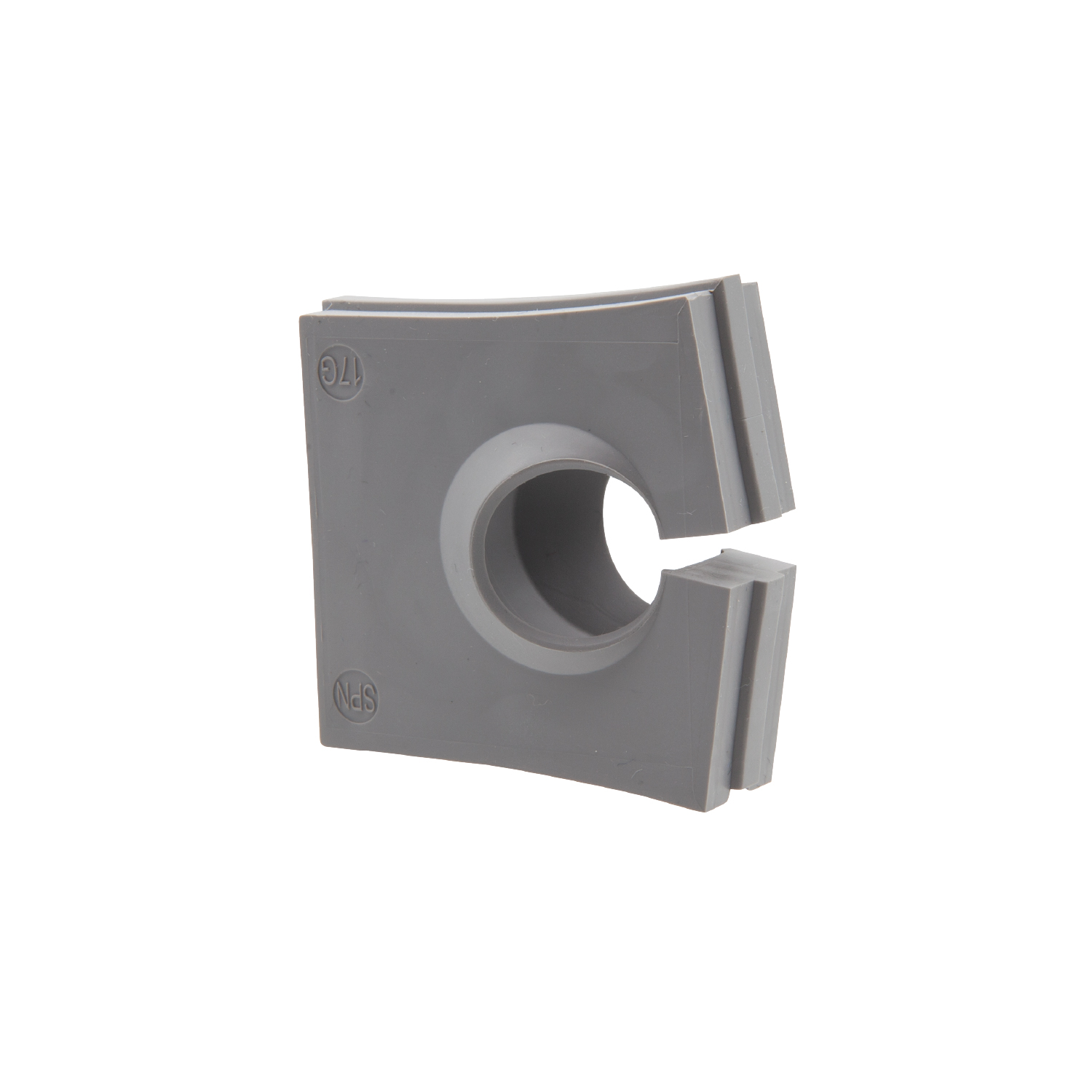

| SPN 17G | 1731053120 | 16 - 20 | ||||||||||||||||||
| SPN 21G | 1731053125 | 20 - 24 | ||||||||||||||||||
| SPN 25G | 1731053130 | 24 - 28 | ||||||||||||||||||

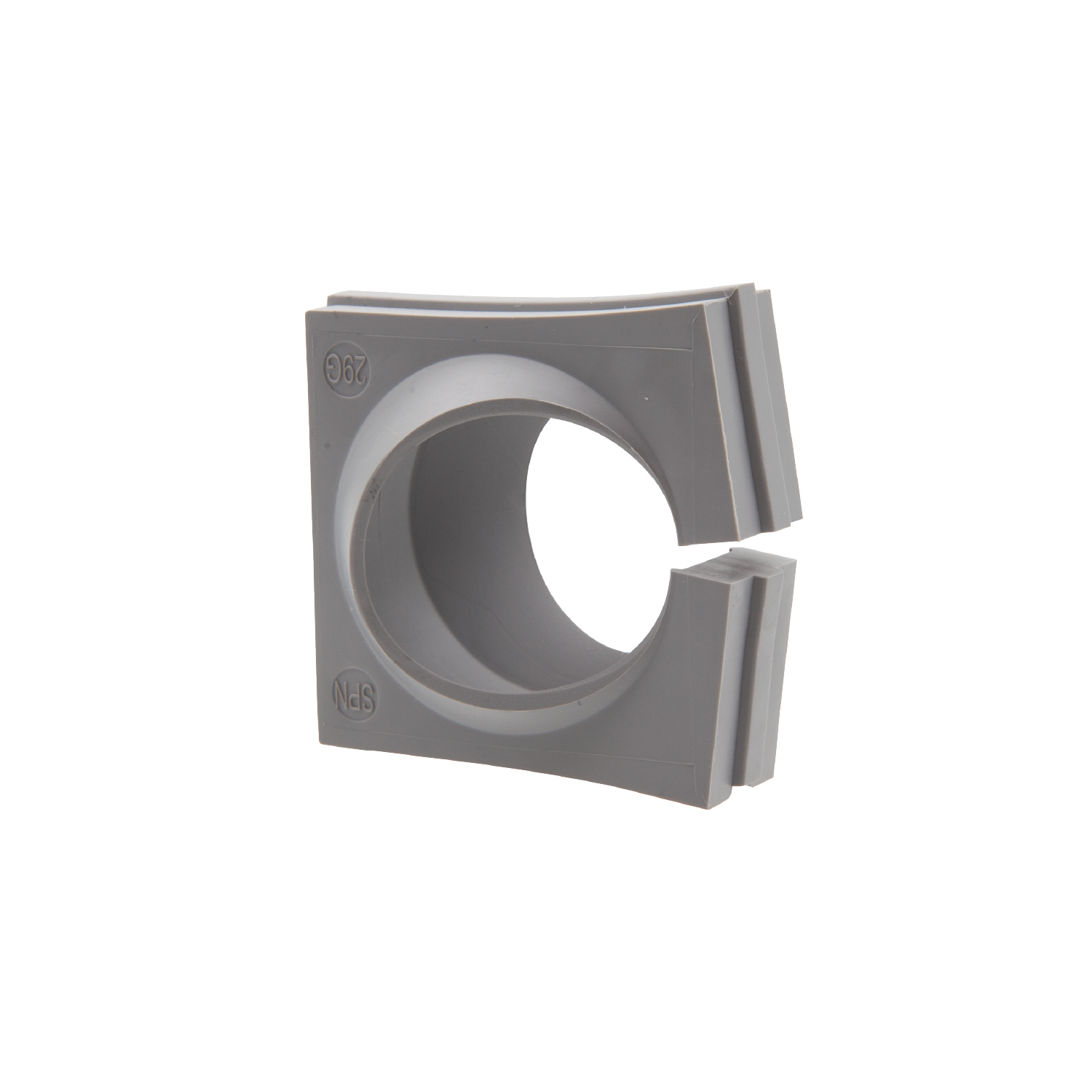

| SPN 29G | 1731053135 | 28 - 31 | ||||||||||||||||||
| SPN 0B | 1731053140 | - | ||||||||||||||||||
| SPN 13B | 1731053145 | 11,5 - 16 | ||||||||||||||||||
| SPN 17B | 1731053150 | 16 - 20 | ||||||||||||||||||
| SPN 21B | 1731053155 | 20 - 24 | ||||||||||||||||||
| SPN 25B | 1731053160 | 24 - 28 | ||||||||||||||||||
| SPN 29B | 1731053165 | 28 - 31 |
- Gommini apribili multi-range grandi per cavi con diametri da 11,5 a 31 mm

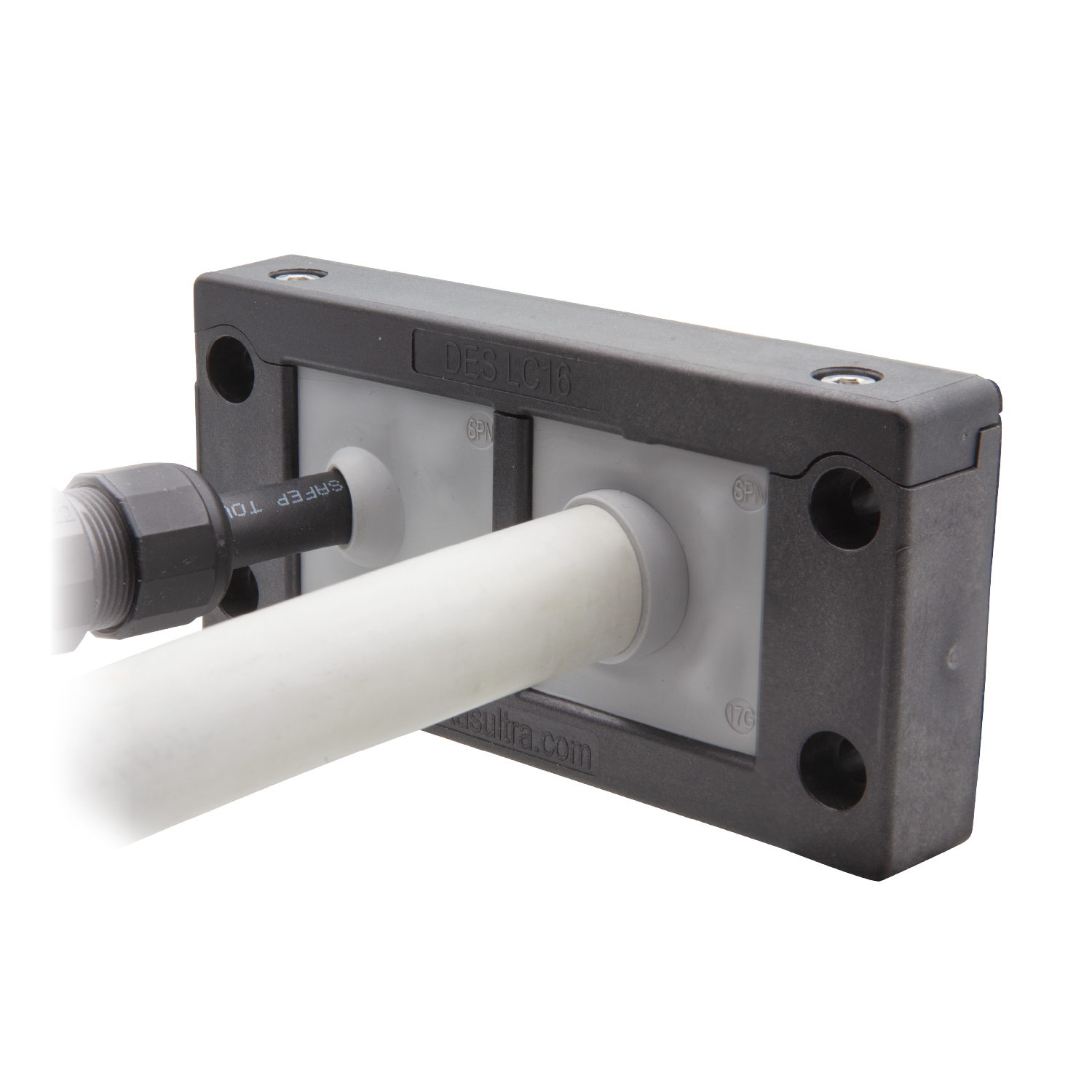

- Utilizzabili solo nei telai DES LC
- Long lasting product and high resistance to industrial oils.
- Colours grey and black
- UL94-V0 for both colours
- IP54
- Material: TPE
- Flammability: self-extinguishing according to UL94-V0 (grey or black)
- Temperature: -40°C... +110°C (static)
- Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
