DES LC16

Name: DES LC16
Brand: Detasultra
SKU: des-lc16

No items found.

DES LC16

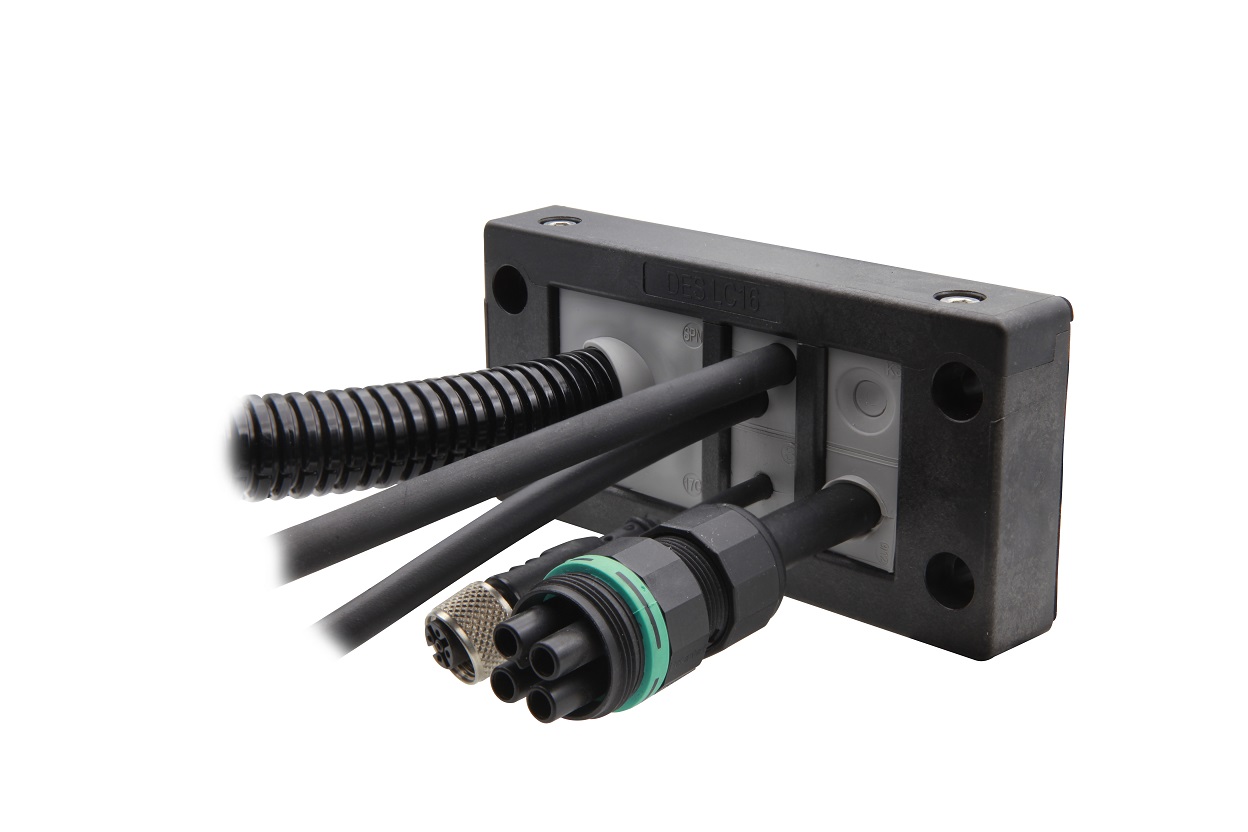

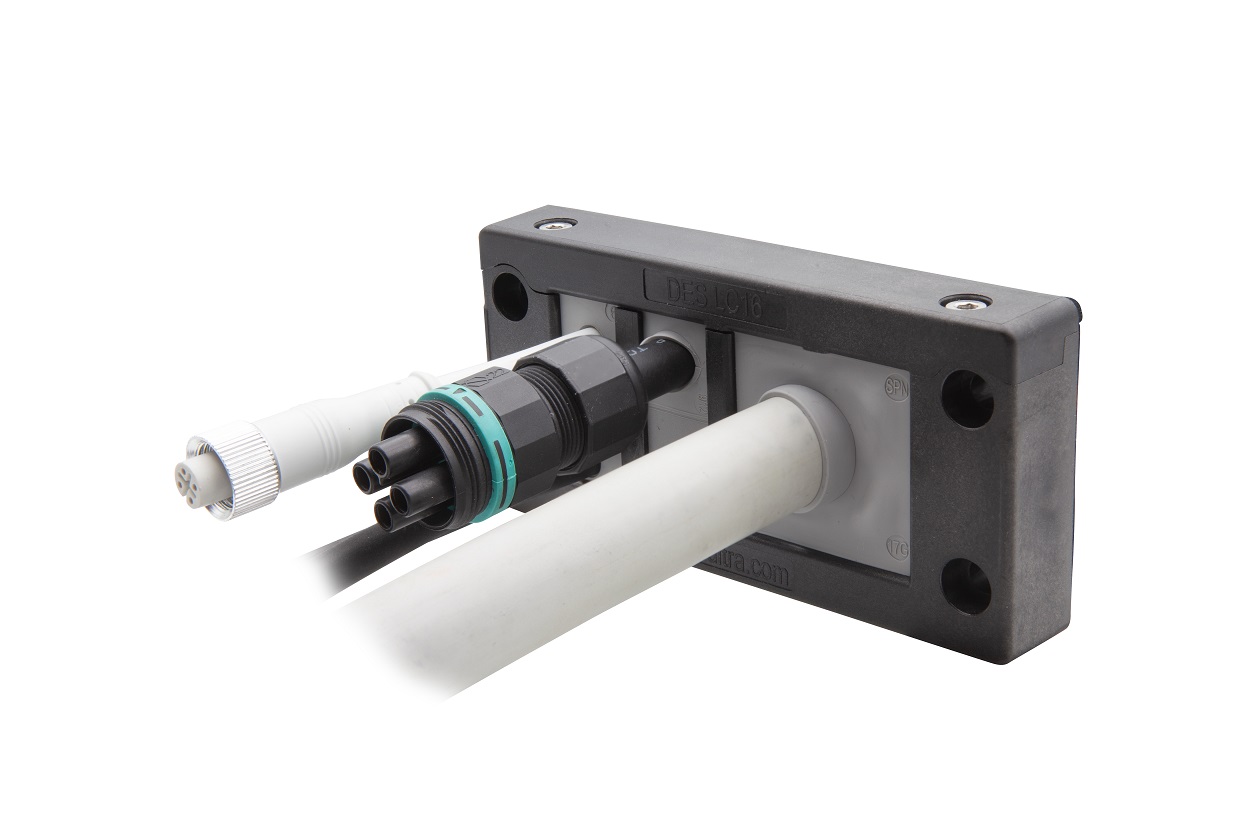

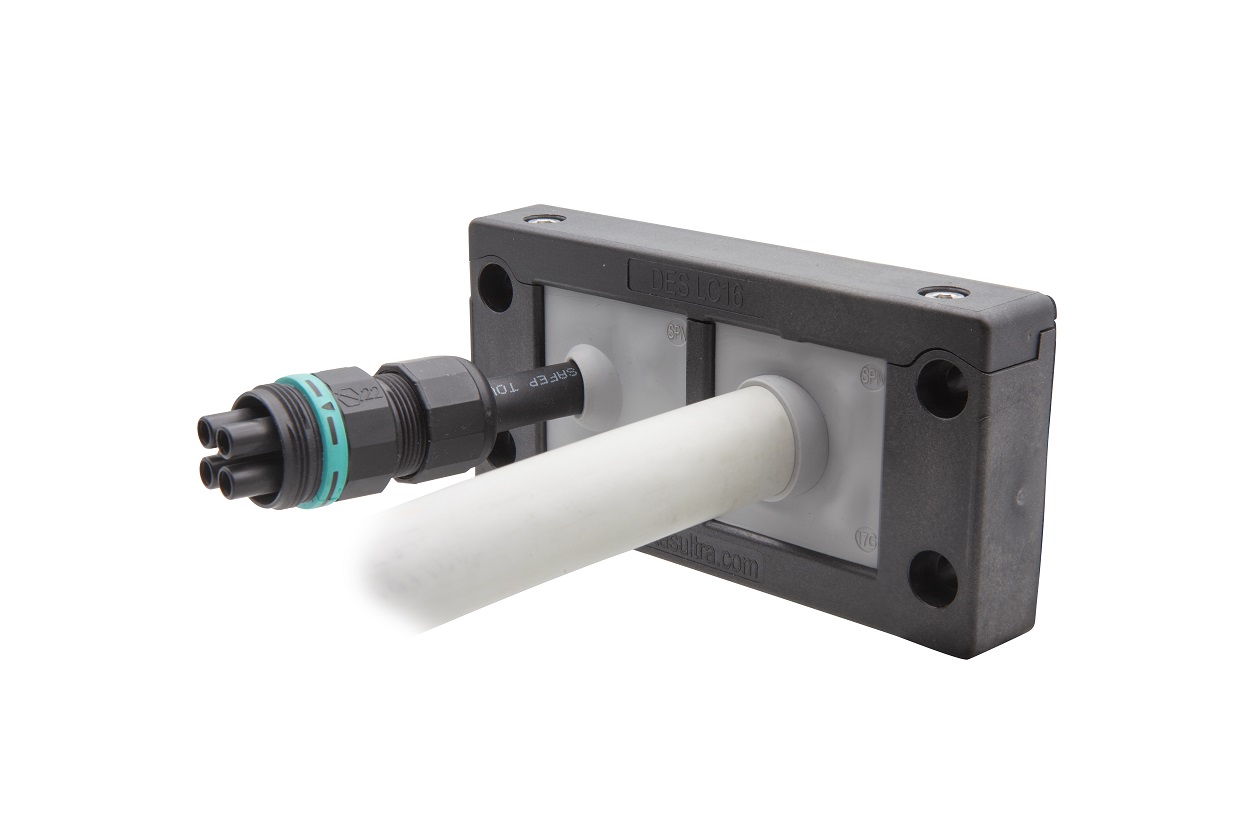

The DES LC16 is a split frame designed to accommodate different combinations of cables, with or without connectors. It is compatible with small and large grommets from the SPC and SPN families.

The gasket is pre-mounted on the frame, allowing the DES LC16 to be installed directly on the cabinet. Fastening is achieved with stainless steel screws, while the locknuts are overmolded.

The frame's innovative polycarbonate (PC) material provides superior strength, particularly in extreme temperatures, compared to other commonly used materials.

A set of 4 AISI304 fastening screws with Black geomet finishing (code 1731991020) is available upon request.

"UL Recognised Component" Mark

Flammability class UL 94 V-0

Resistance to atmospheric agents

EU RoHS legislation

Model	Code	Max. opening [mm]	Opening Ø [mm]	Cable Ø max. [mm]	Dimensions A	Size B	Size C	Dimensions H	Dimensions [mm]	Dimensions [mm] Cut-out	Dimensions [mm] Cut-out A1xA2	Dimensions [mm]	Dimensions [mm] L1xL2	Dimensions Ø P [mm]	Thread	No. cables - Ø cables [mm]	Hole Ø	Clamping range [mm]	Notes
Model	Code	Max. opening [mm]	Opening Ø [mm]	Cable Ø max. [mm]	Dimensions A	Size B	Size C	Dimensions H	Dimensions [mm]	Dimensions [mm] Cut-out	Dimensions [mm] Cut-out A1xA2	Dimensions [mm]	Dimensions [mm] L1xL2	Dimensions Ø P [mm]	Thread	No. cables - Ø cables [mm]	Hole Ø	Clamping range [mm]	Notes
DES LC 16	1731010344	86 x 36
DES LC 16/2	1731010346	86 x 36
