Entry systems for cables with and without connectors

Grommets

SPP Z3
-
-
No items found.

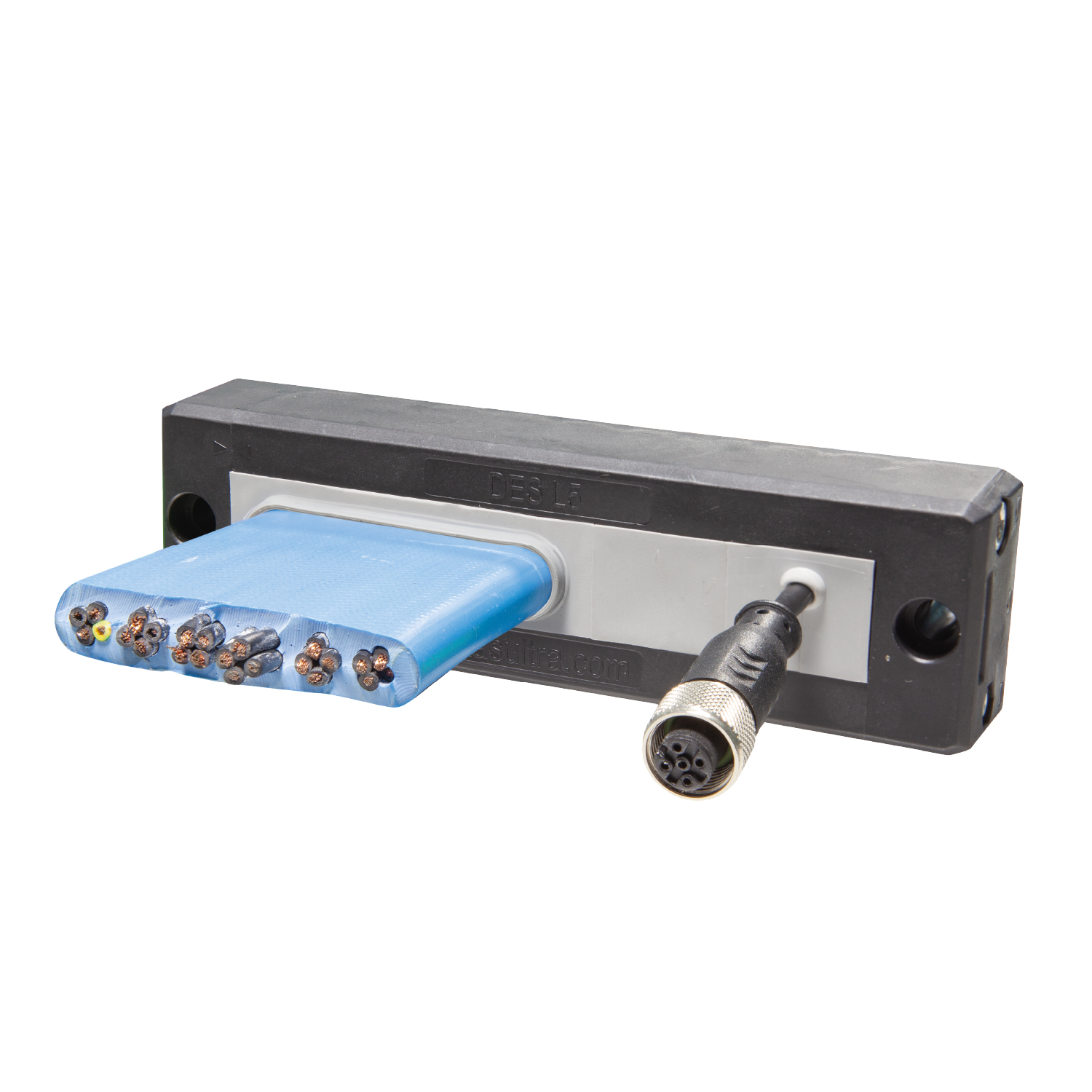

SPP Z3

Pierceable cable grommet for flat cables

The SPP Z3 is a grommet for flat cables wjhich is designed  for various models. The pierceable membrane is divided into multiple sections. It is compatible with existing DES frames, with no need for a specific frame.

The grommet is cut in the proper slots according to the width of the flat cable version that need to be used. When the cable crosses the wall it provides IP66 protection and additionally offers remarkable strain relief.

NEMA 4X* classification
UL Type 4X classification*
ECOLAB certification
Flammability class UL 94 V-0
Resistance to atmospheric agents
EU RoHS legislation
Models
Properties
Compatible grommets
Configurator
Download
Model Code Max. opening [mm] Opening Ø [mm] Cable Ø max. [mm] Dimensions A Size B Size C Dimensions H Dimensions [mm] Dimensions [mm] Cut-out Dimensions [mm] Cut-out A1xA2 Dimensions [mm] Dimensions [mm] L1xL2 Dimensions Ø P [mm] Thread No. cables - Ø cables [mm] Hole Ø  Clamping range [mm] Notes
SPP Z3 1731020730
  • Can be used with flat cables up to 65 mm wide
  • No need for special frames, compatible with all DES family frames
  • IP66
  •  Same size as 3 SPPs
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
No items found.
Catalog page
Catalog page
Catalog page
Catalog page
Catalog page
Catalog page
Instructions (.pdf)
Cut-out (.dxf)
Data sheet (.pdf)
Download CAD
