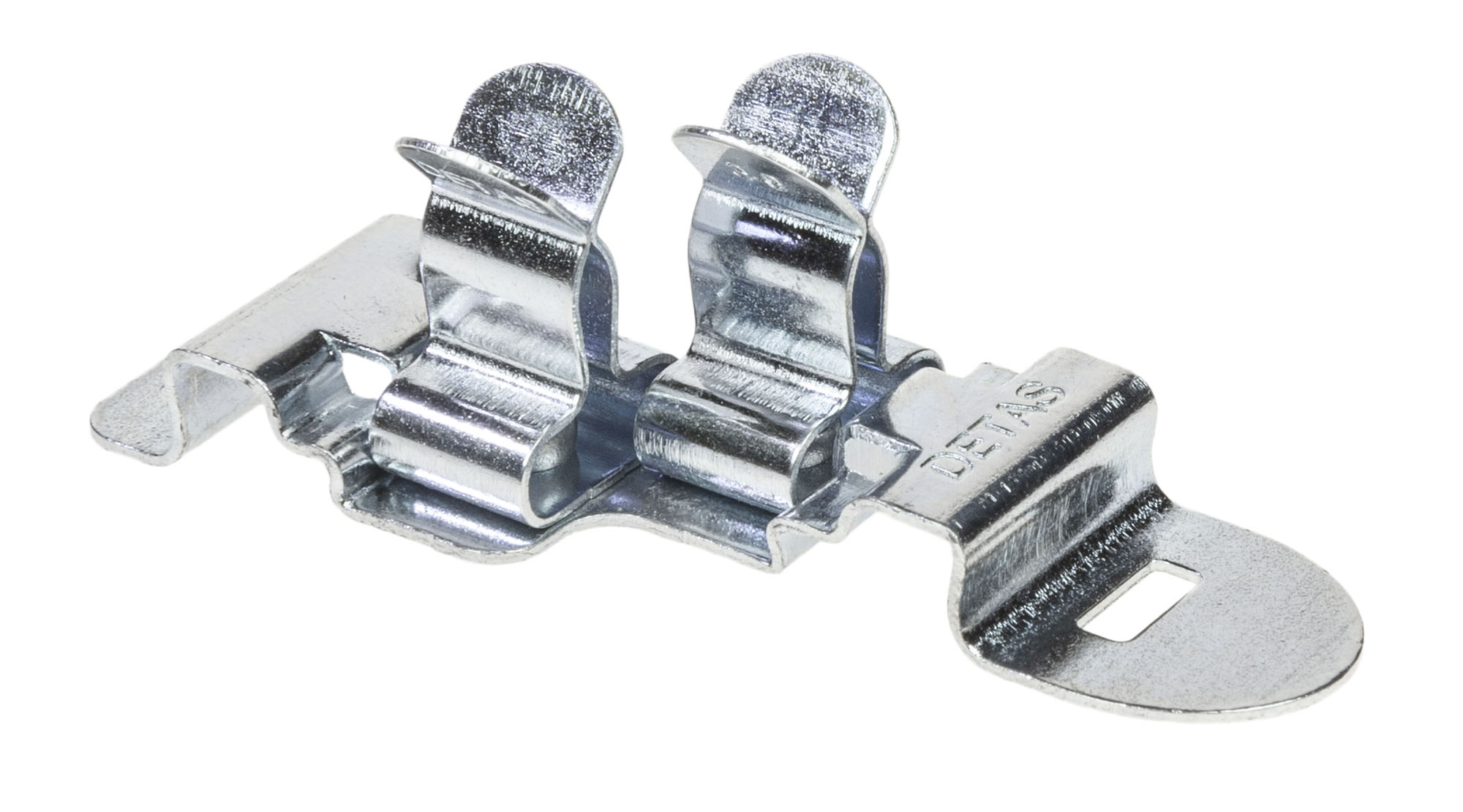

MSP/MSPC shielding clamps , enable easy and effective grounding of cable shielding.

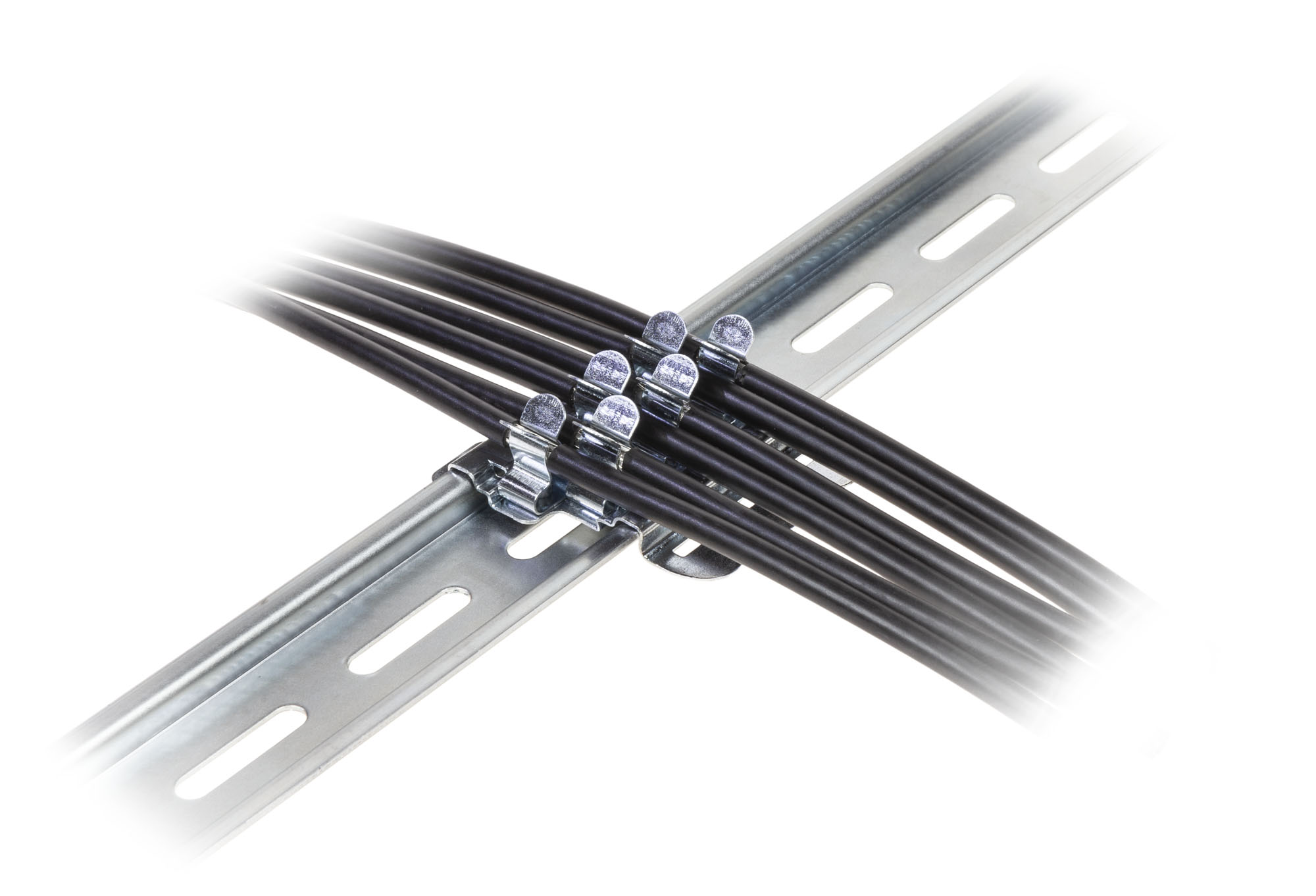

They ensure the strain relief function on the cable thanks to a cable tie. The strain relief function complies with EN 62444 standards. The special construction shape allows side-by-side mounting on 35 mm DIN rail, enabling significant space saving
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| MSP 1,5-3 | 1734010410 | 1,5 - 3 | Not available for the German market | |||||||||||||||||
| MSP 1,5-3 V2 | 1734010411 | 1,5 - 3 | ||||||||||||||||||
| MSP 3-6 | 1734010420 | 3 - 6 | Not available for the German market | |||||||||||||||||
| MSPC 3-7 | 1734010421 | 3 - 7 | ||||||||||||||||||
| MSPC 6-10 | 1734010425 | 6 - 10 |
The interconnecting cables between equipments inside electrical panels or machinery are the main way how the interference (EMI) propagates into the external environment surrounding the equipment. A classic example is frequency converters and their connectors.
It is well known that the contribution of the cable to the overall EMC performance of the system is critical. The effectiveness of the shielding can often be compromised by cables with poor EMI protection characteristics. The importance of cable shielding is one of the key factors in avoiding loss of EMI performance of the overall system.
MS Series shileding clamps are the important EMC solution for the performance of the electrical system without disturbances.
A variety of fixing options within the electrical cabinet or equipment allows the best and most efficient solution to be found.
The wide choice of models and low cost make these cable shielding systems very attractive and easy to install.
