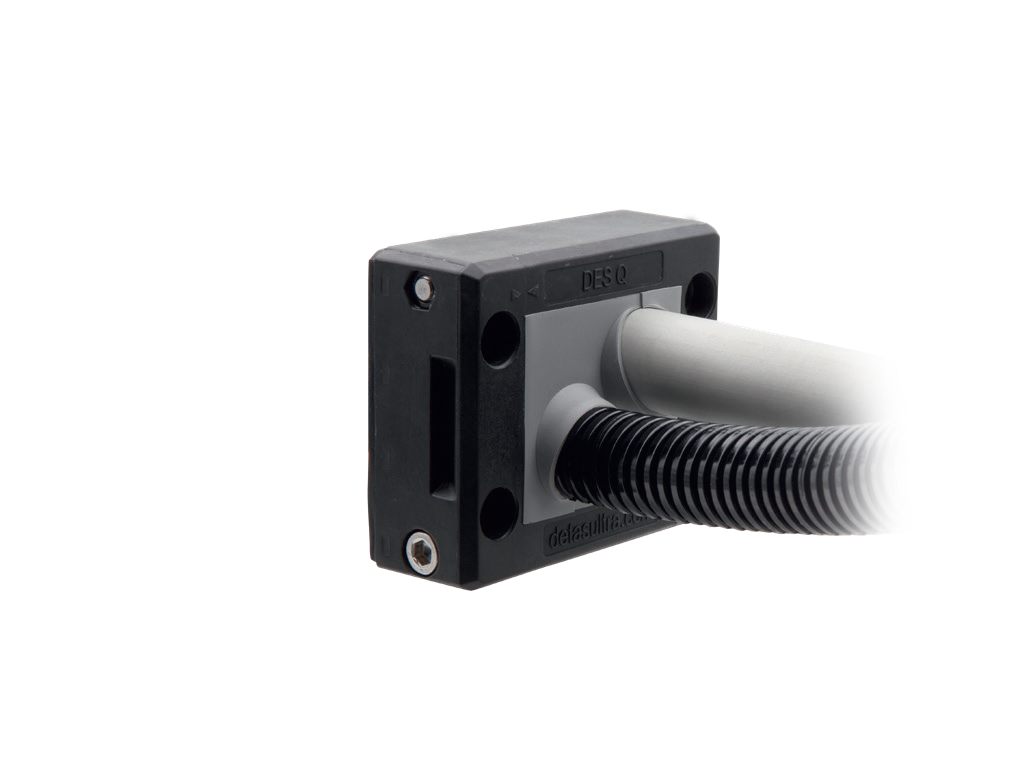

The openable grommets with extended range of the SPG 2R series allow the insertion of cables with or without connectors. They are available for diameters from 18 to 20 mm.
SPG 2R grommets allow to route simultaneously two cables, even with different diameters, providing significant cost, time and space savings over traditional solutions.
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Max. opening [mm] | Opening Ø [mm] | Cable Ø max. [mm] | Dimensions A | Size B | Size C | Dimensions H | Dimensions [mm] | Dimensions [mm] Cut-out | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] | Dimensions [mm] L1xL2 | Dimensions Ø P [mm] | Thread | No. cables - Ø cables [mm] | Hole Ø | Clamping range [mm] | Notes | |
| SPG 2R1G | 1731022140 | 18 - 20 | ||||||||||||||||||
| SPG 2R1B | 1731022240 | 18 - 20 |
